Lucid is defined by an engineering culture of excellence without compromise. Our proprietary electric powertrain technology supports a range of commercial partners through integrated software and hardware solutions. Precise controls and full system optimization maximize efficiency while delivering greater power, range, and fast-charging capabilities.
Powering turnkey electric
mobility solutions
Versatile off-shelf solutions for a range of electric mobility partners.

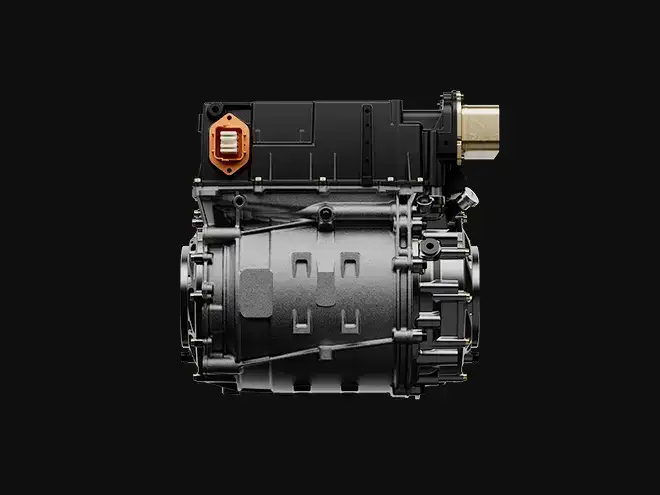

Fully Integrated Motor Drive Units
Our fully integrated motor drive units—comprising inverter, motor, and gearbox—are engineered to optimize efficiency and performance. Additional features include advanced traction control, drive unit heat generation, and voltage-boost charging.¹
Zeus Single Motor Drive Units
Our most capable, high-performance single-motor drive unit with versatile orientation to support vertical and horizontal configurations. Also features multi-voltage boost charging capability.
Power: Up to 500 kW (650 hp)
Output Torque: Up to 5800 Nm (7864 lb-ft)
Output Speed: Up to 3700 rpm
Weight (Complete Drive Unit): Down to 74 kg (163 lb)

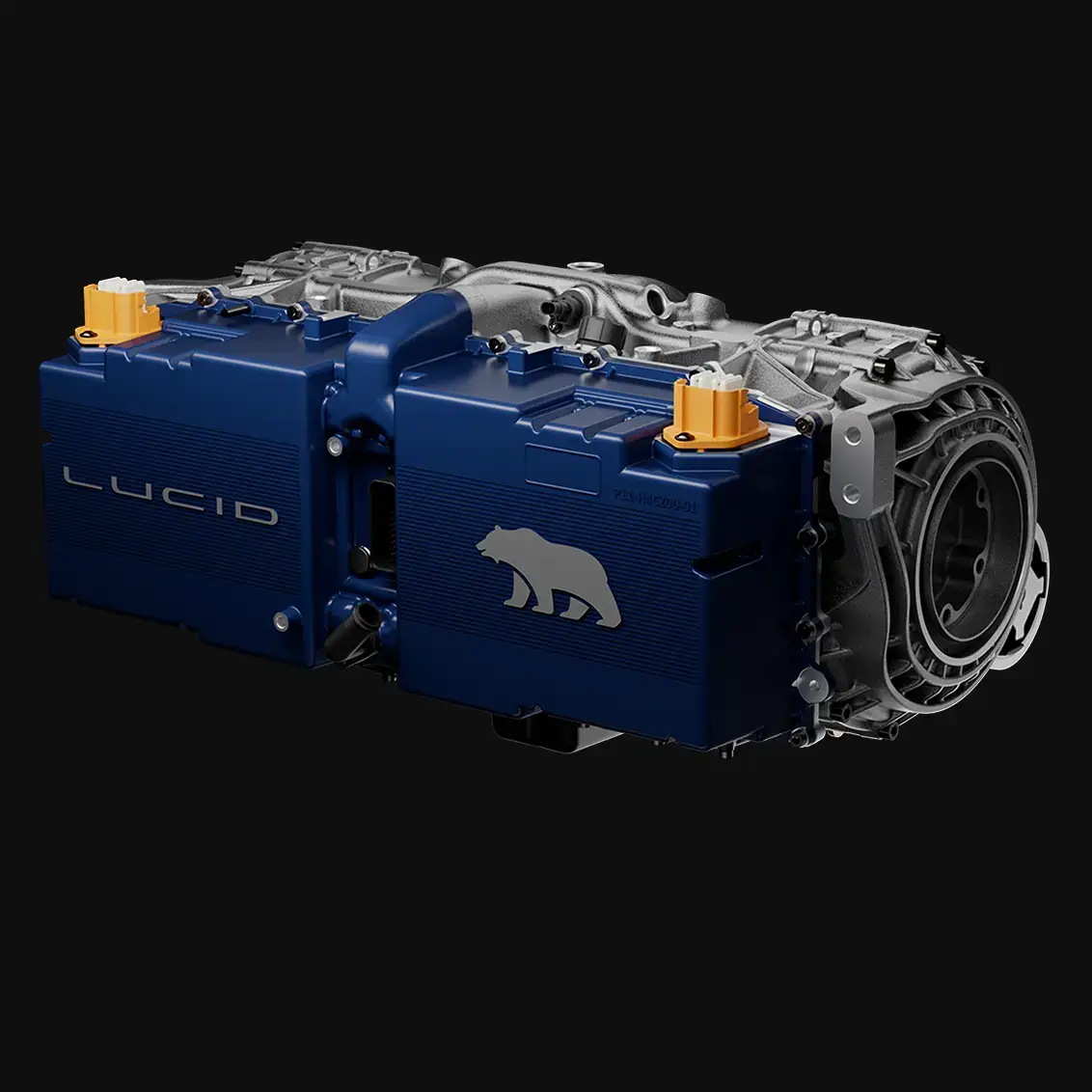

Zeus Twin Motor Drive Unit
The ultimate performance twin motor drive unit, engineered for products demanding maximum power and pushing the boundaries of what's possible.
Power: 1000 kW (1340 hp)
Output Torque: Up to 10000 Nm (13558 lb-ft)
Output Speed: Up to 3700 rpm
Weight (Complete Drive Unit): 145 kg (319 lb)

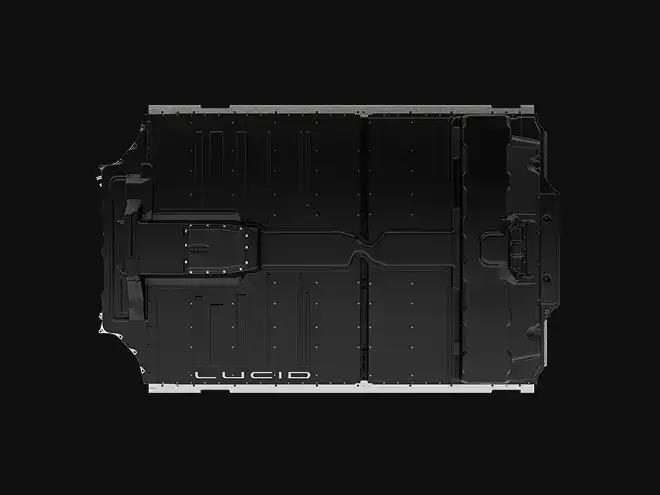

Battery Systems and Modules
Designed for scalability and modularity, we offer flexible solutions to optimize cost, mass, packaging, and range. With over hundreds of million miles of real-world testing, Lucid's in-house technology is proven to deliver exceptional reliability and performance.
Complete Systems
Scalable pack architecture with fully integrated battery management hardware and software.
Usable Energy: Up to 120 kWh
Peak Power: Up to 1000 kW
Fast Charge: Up to 400 kW
Peak Voltage: Up to 926 V
Other configurations possible

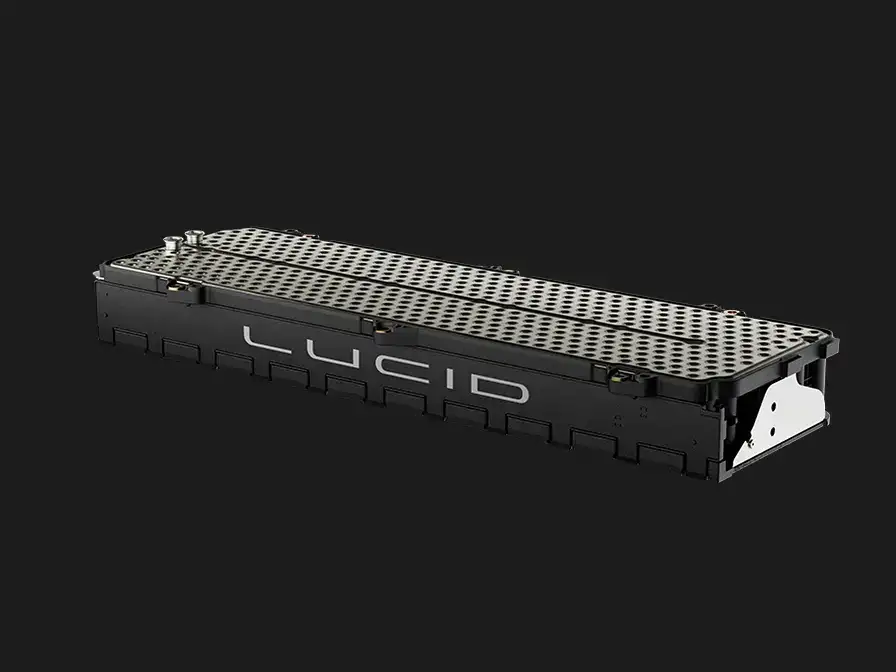

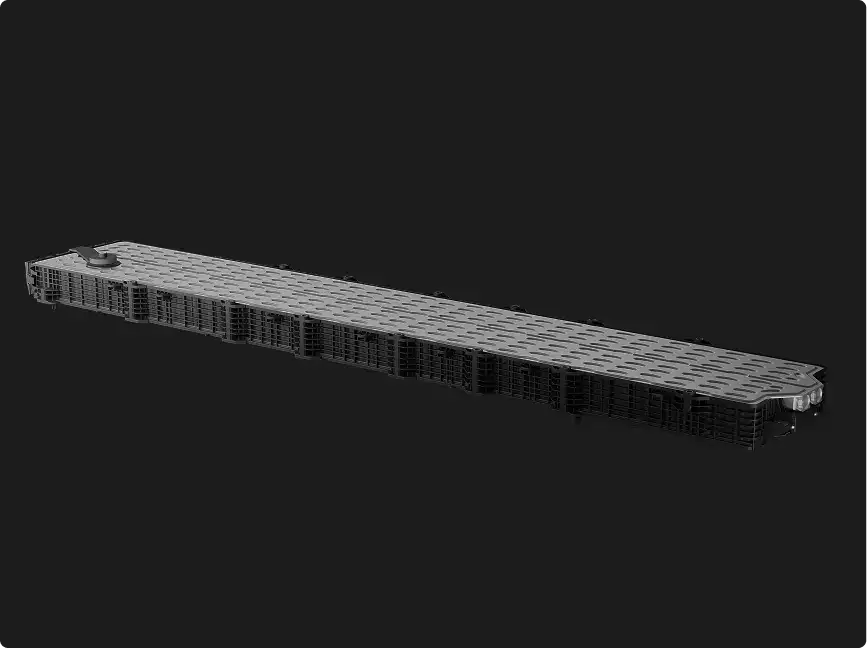

Small Format Modules
Highly modular and mass manufacturable. Integrated voltage and temperature sensing.
Usable Energy: Up to 5.5 kWh
Peak Power: 45.5 kW
Fast Chrage: 18.2 kW
Peak Voltage: 42 V Standard
Other configurations possible

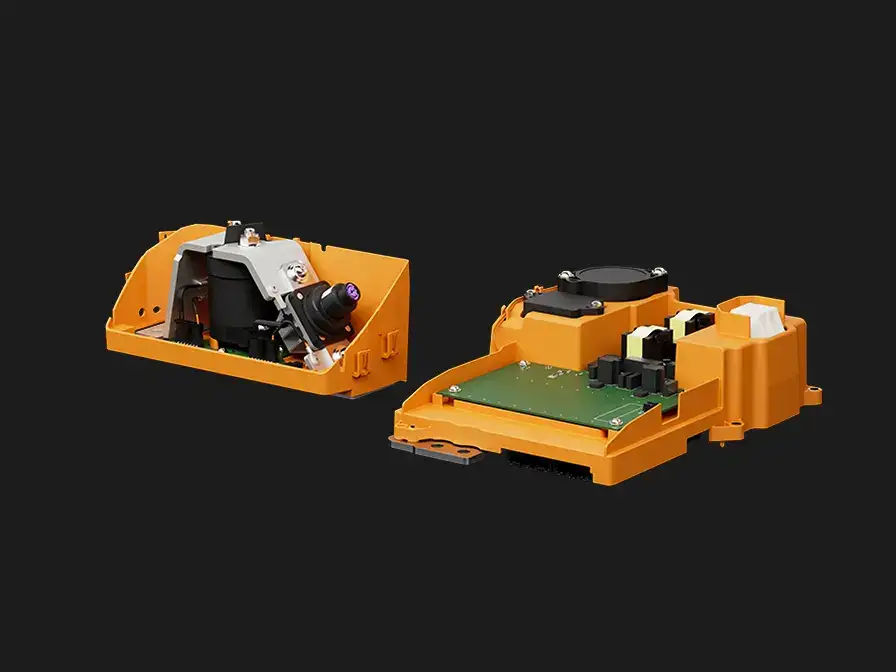

Charging and Battery Management
Lucid’s integrated charging and high voltage management systems are silicon carbide-based and enables fast charging at both 500V- and 1000V- architecture fast chargers. Systems include bi-directional charging compatibility when paired with applicable software and accessories.

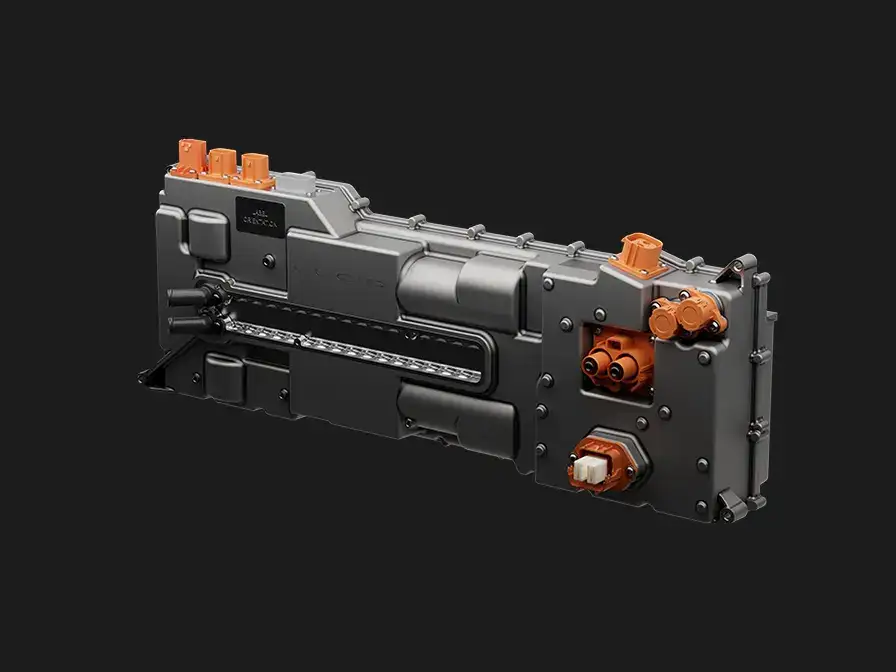

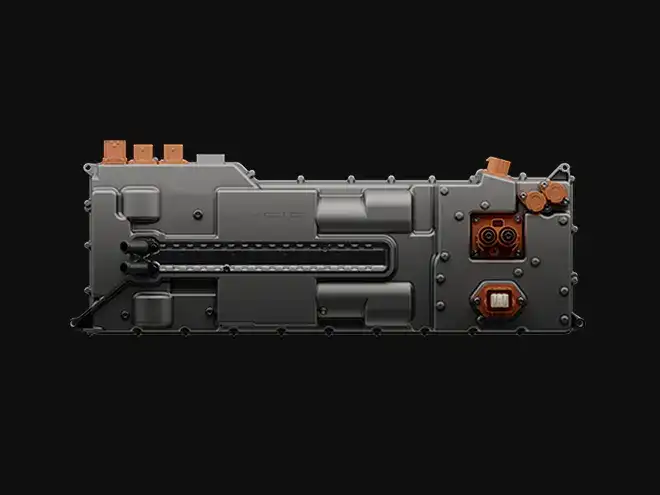

Wunderbox Multi-Function Charger
Integrated charging and high-voltage management system with available bi-directional capability.²
AC Charge: Up to 21 kW
DC Charge: Up to 400 kW, 50 kW @ 400 V
DCDC: 10 kW, 400 V Output
Voltage: Up to 1000 V
Integrated Software Solutions
Our comprehensive approach offers complete software integration with vehicle systems, including customized parametric control and extensive Over-the-Air (OTA) software update capability.

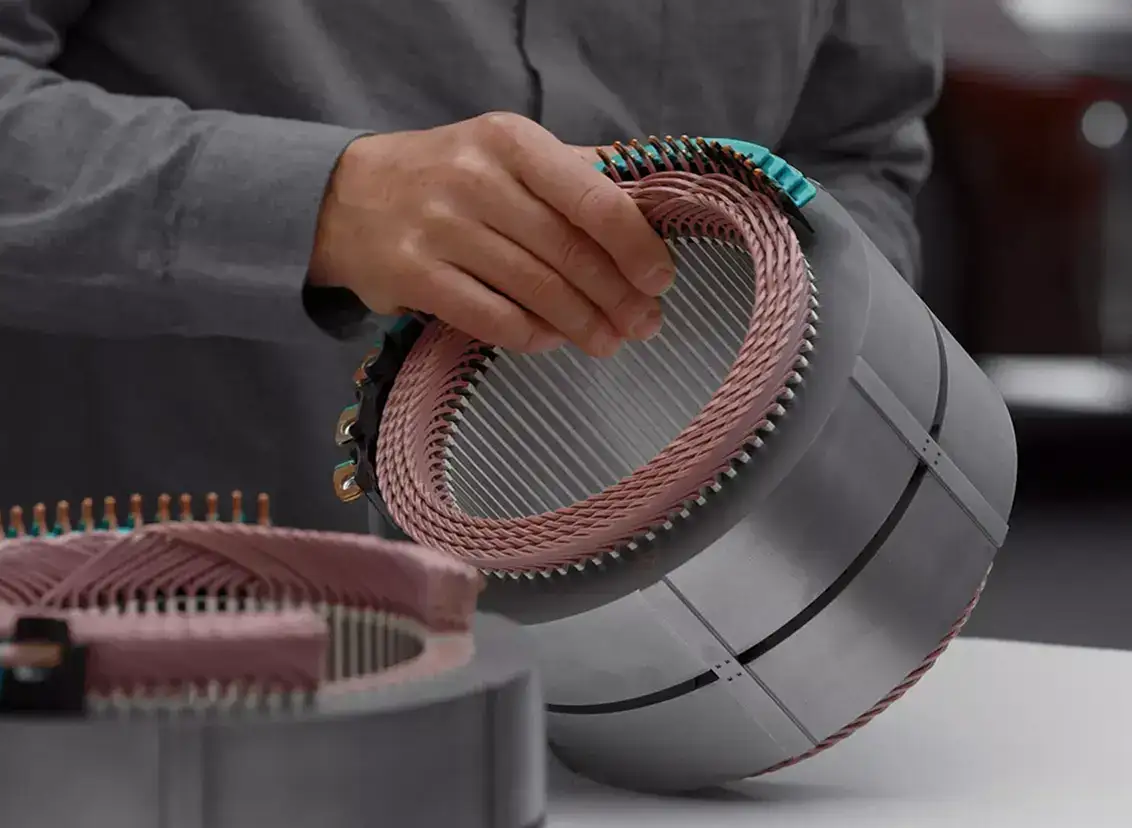

Advanced Powertrain Manufacturing
Our cutting-edge electric drive units and powertrain components are assembled in-house at our vertically integrated, highly automated facility in Casa Grande, AZ.
Lucid Technology & Manufacturing Day
Lucid Motors experts provide an in-depth look at Lucid’s groundbreaking powertrain technologies, covering everything from industry-leading performance to scalability and cost-effectiveness.
