Battery Pack Information
Introduction
This page provides required battery information for Lucid vehicles in compliance with 13 CCR §1962.6, offering easy access to key specifications for MY26+ batteries while also including limited pre‑MY26 data to support the service needs.

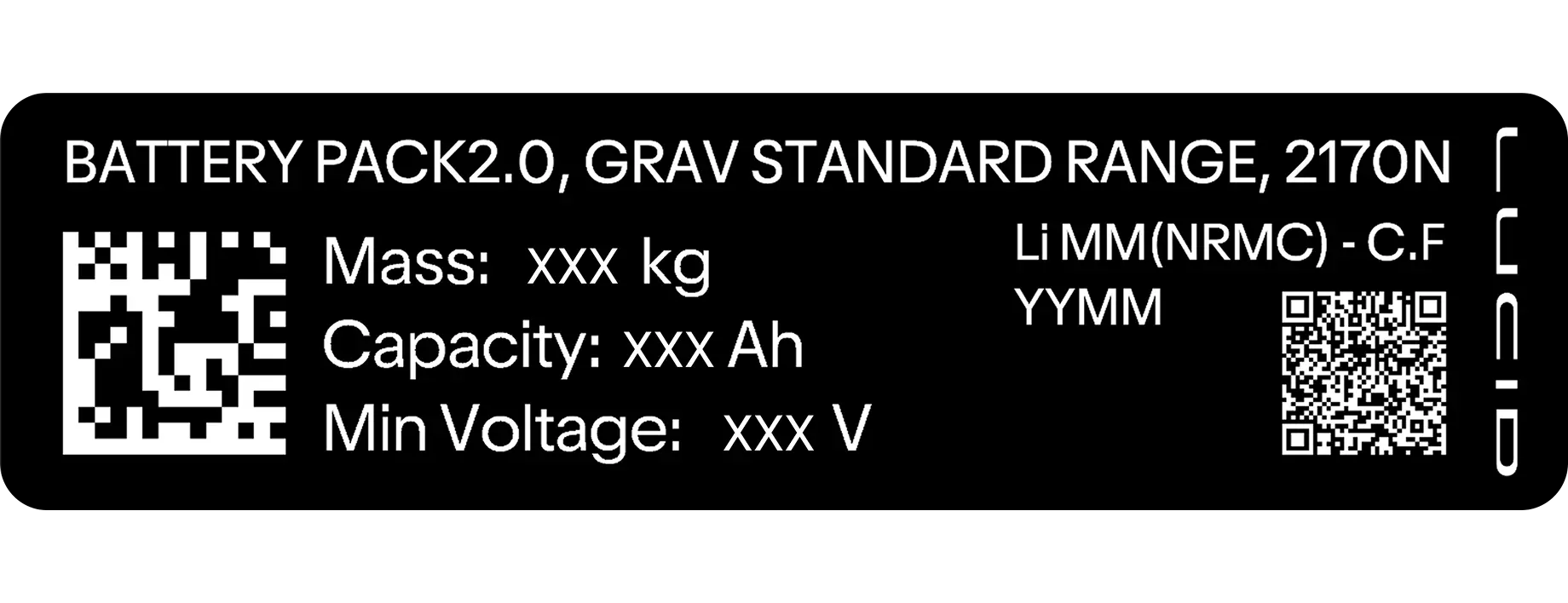

The battery label
The battery label identifies the specific battery pack and presents key information including mass, capacity, minimum voltage, chemistry code, manufacturing date, and QR codes that link to this page.
Battery Label Location Instructions
The battery identification labels are located under the front hood and on the battery enclosure. Both Lucid Air and Lucid Gravity have the battery label that is compliant with 13 CCR 1962.6.
How to access the Label under the front hood?
Step 1: Open the hood.
Step 2: The label is under the right‑hand side of the front hood.
Step 3: Look downward and inward, toward the deep recess of the front under‑hood structure.
Step 4: The label is mounted on the inner surface of the stamped front panel.
Step 5: The label is black‑and‑white and oriented horizontally
Alternate Location on the Battery Pack
A secondary label can also be found directly on the battery housing, applied to the metal surface of the pack.
Battery Pack Information
Battery Pack Number
Battery Pack Information
M21-179066-00
Description: BATTERY PACK2.6, PURE 16M_2170N(+)
Number of Modules¹: 16
Number of Battery Cells: 4800
Chemistry Identifier²: Li MM(NRMC) - C.F
Min Voltage³: 400V
Capacity: 151Ah
Hazardous substances⁴: See details
M11-178746-00
Description: BATTERY PACK2.6, STANDARD 18M_50GV2(+)
Number of Modules¹: 18
Number of Battery Cells: 5400
Chemistry Identifier²: Li MM(NRMC) - C.F
Min Voltage³: 450V
Capacity: 151Ah
Hazardous substances⁴: See details
M11-176039-00
Description: BATTERY PACK2.6, EXTENDED 22M_50GV2(+)
Number of Modules¹: 22
Number of Battery Cells: 6600
Chemistry Identifier²: Li MM(NRMC) - C.F
Min Voltage³: 550V
Capacity: 151Ah
Hazardous substances⁴: See details
M11-298784-00
Description: BATTERY PACK2.6, SAPPHIRE 22M_50GV2(+)
Number of Modules¹: 22
Number of Battery Cells: 6600
Chemistry Identifier²: Li MM(NRMC) - C.F
Min Voltage³: 550V
Capacity: 151Ah
Hazardous substances⁴: See details
M21-264186-00
Description: BATTERY PACK2.6, EXTENDED 22M_2170N(+)
Number of Modules¹: 22
Number of Battery Cells: 6600
Chemistry Identifier²: Li MM(NRMC) - C.F
Min Voltage³: 550V
Capacity: 151Ah
Hazardous substances⁴: See details
Additional Information
Safe Disposal Information
Please refer to the Battery Safety Guidelines in the Owner's Manual. If you have more questions, please reach out to your local Lucid Service centers.
Product Safety Information
If a component is subject to an active safety recall, the corresponding NHTSA campaign number will be listed in the table. This campaign number can be used to obtain further details at www.nhtsa.gov/recalls.
